380W Waterproof Moving Head Light SK-MHL-M380B IP

380W Waterproof Moving Head Light

SK-MHL-M380B IP

Technical Parameters

Power Supply Parameters

• Input Voltage: AC100 - 240V

• Power Frequency: 50/60Hz

• Power: 500W

Lamp Parameters

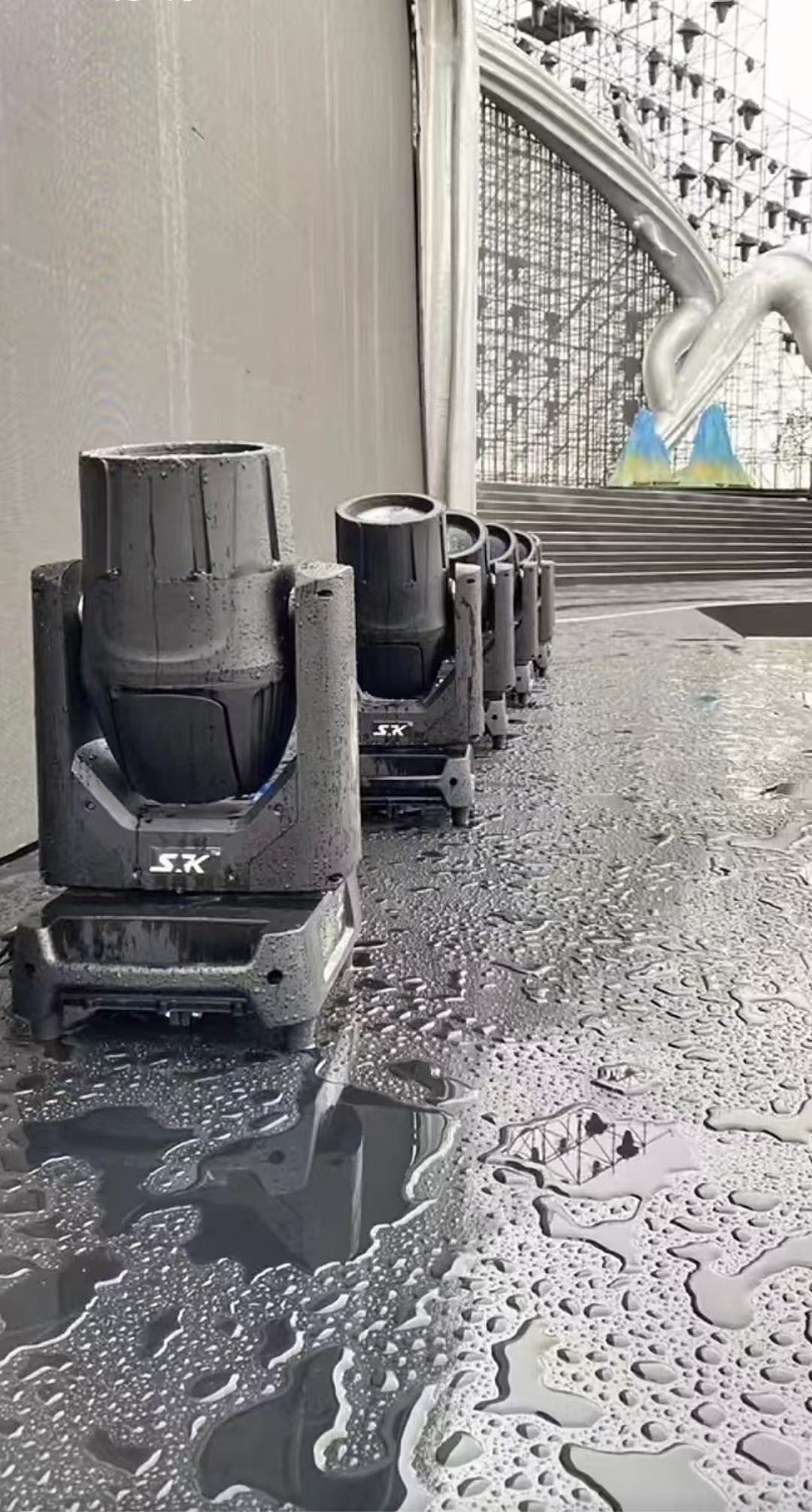

• Waterproof Coefficient: IP65

• Heat Dissipation Method: Air Cooling

• Maximum Operating Ambient Temperature: 45℃

• Shell Color: Black

• Lamp Bead Specifications

• Bulb Specification: 380W Bulb

• Bulb Color Temperature: 8000K

• Average Bulb Life: 2,000 hours

Control System

• DMX Control Channels: 19CH International Standard DMX512 Channels

• DMX Connector: 3 Pin XLR Input and Output (Daisy Chain)

• Power Connector: Daisy Chain Power Input and Output

• Operating Modes: Master/Slave, Auto, DMX

• Horizontal Scanning: 540°, (16bit Precision Scanning)

• Vertical Scanning: 270°, (16bit Precision Scanning)

• The advanced scanning system is faster, with low temperature and quiet operation, and has an automatic error correction and reset function.

• Color Wheel: 14 Fixed Colors + White Light, Color Chips Can Be Arbitrarily Positioned

• Gobo Wheel: 12 Fixed Gobos + White Light + 5 Glass Gobo Wheels, with Gobo Shake and Arbitrary Positioning Functions

• Six-Color Fogging: 1 Six-Color Rainbow Effect + One Fogging Effect

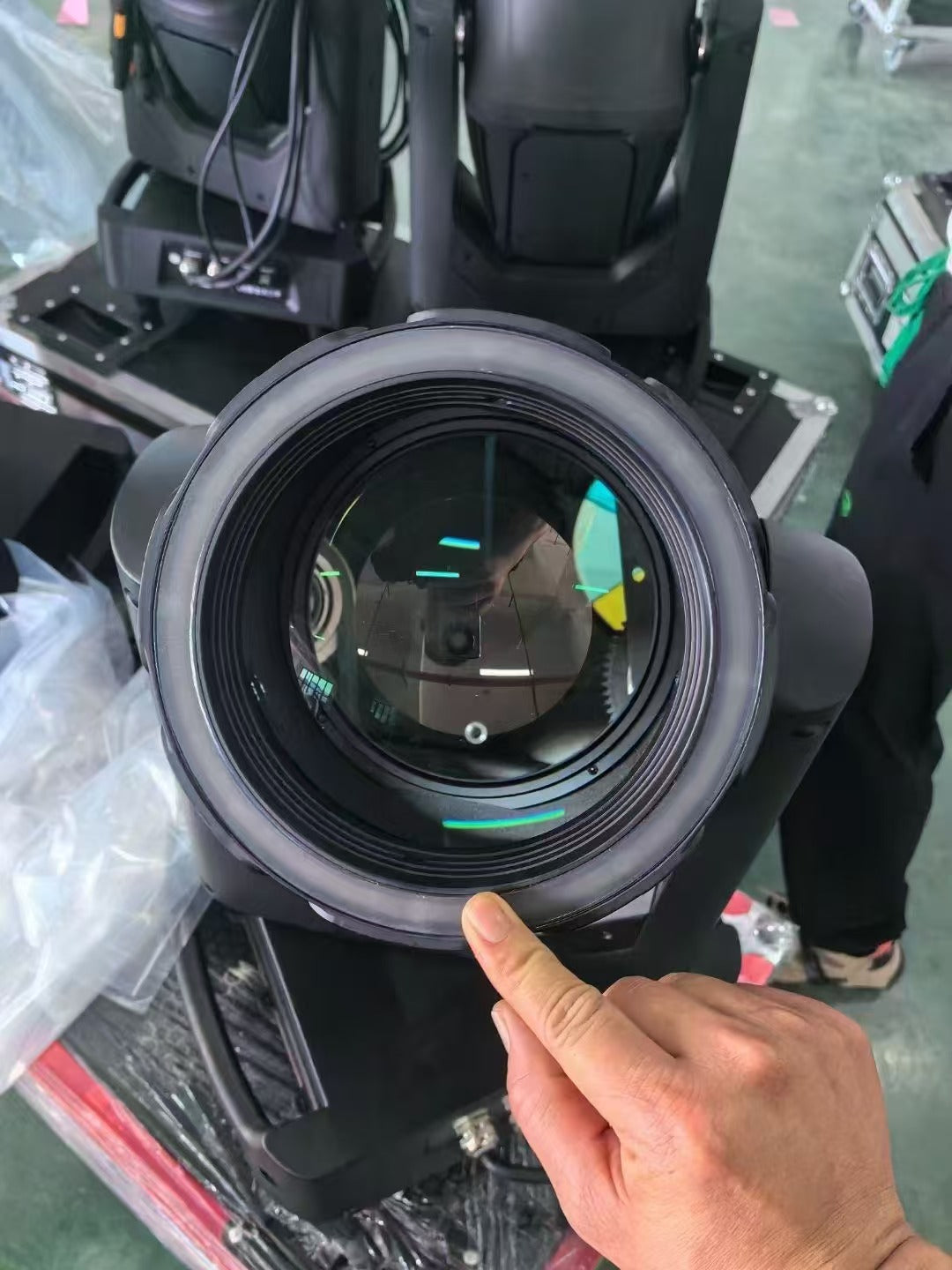

• Focusing: Electronic Focusing, Ultra-Smooth Adjustment of Focal Length

• Prism 1: 12 Prisms, Can Rotate Prisms Individually

• Prism 2: 8 + 16 Prisms, Can Rotate Prisms

• The two prisms can be used overlapped and rotated in both forward and reverse directions.

• Lighting Angle: 2°

• Dimming: 0 - 100%

• Strobe: 1 - 25Hz

• Full-Color LCD Display with 5 Touch Buttons

Color Effects

• Colors: 6 Colors, Rainbow Effect

• Lighting Angle: 2°

• Strobe: 1 - 25Hz

• Dimming: 0 - 100%

• Illuminance: 200,000lux@15 meters

Dimensions

• Product Dimensions: 393261cm (Length x Width x Height)

• Net Weight: 20.2 kg

This is a detailed introduction to a 380W waterproof moving head light, including technical parameter information such as power supply parameters, lamp parameters, control system, color effects, and dimensions. This light has various functions and features, such as waterproofing, air cooling for heat dissipation, multiple control modes, rich color and gobo effects, adjustable focus, and rotatable prisms, making it suitable for various occasions that require lighting effects, such as stage performances and large-scale events. It has a wide input voltage range to adapt to different regional power standards, and it has high illuminance and a relatively long bulb life.
